محل منبع:
چین
نام تجاری:
YBX
گواهی:
cUL, TUV, CQC, CE, ROHS
شماره مدل:
YB11C4-10A-Q
با ما تماس بگیرید
ویدئو
ویدئو
ویدئو
ویدئو

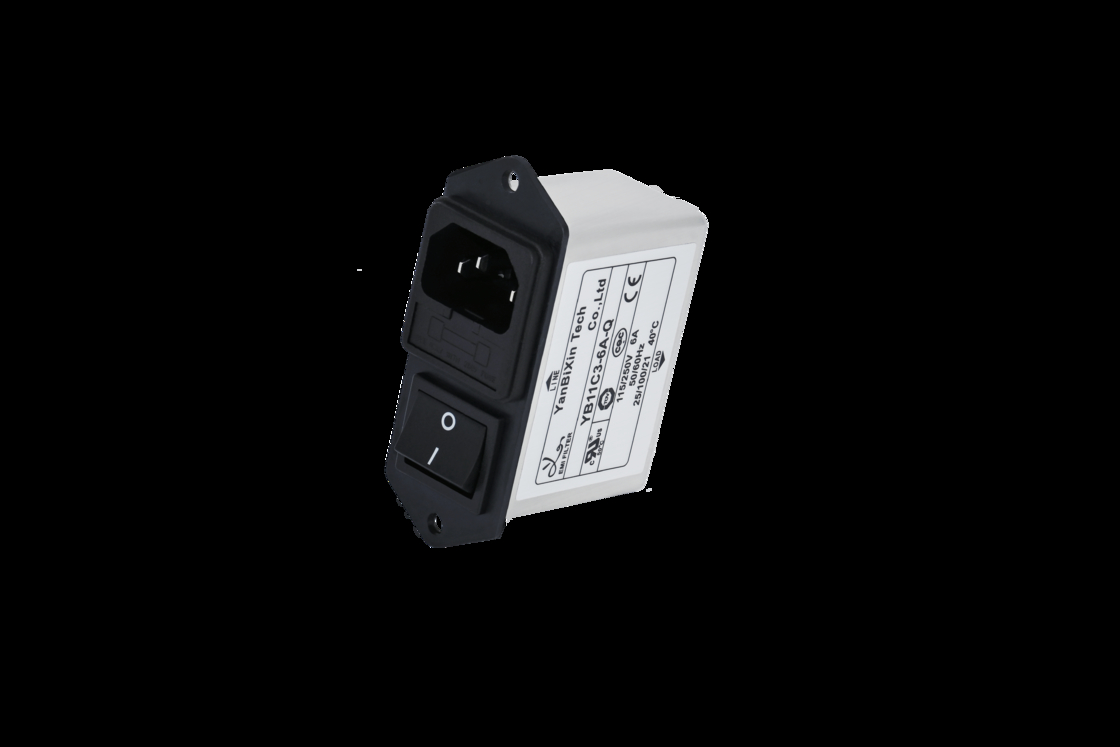

110V/250V AC EMI Filters 10A Power Input Module Filters With Green Switches
Technical Specification:
| Item | Emi Power Filter |
| Model | Emi Power Filter YB-C3 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 100pcs |
| Price | USD2~7/Meter |
| Lead Time | 5~15 weekday |
Features:
-- The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior
-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
1.Portable electrical and electronic equipment;
2.Medical equipment;
3.Test and measurement equipment;
4.Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
Rule of Nomination of IEC Inlet Fiter
| YB | 11 | C4 | - | 10A | - | Q |
| | | | | | | | | | | ||
| Single Phase | Circuit | Dimension | Current | Output Connection | ||
| 11:11 circuit | C4 | 6A : 6 amp | Q:fast-on tab 250 | |||
| 8A : 8 amp | W:wire | |||||
| 10A :10 amp | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C4 | C4 | 1 | Fast-on terminal |
| YB11C4 | C4 | 3 | |
| YB11C4 | C4 | 6 | Wire |
| YB11C4 | C4 | 8 | |
| YB11C4 | C4 | 10 |
Solder Lug Terminals |
Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L | |||||||||||||||||
| C3/C4 | 62 | 61 | 29.5 | 80 | 72 | 35 | 11 | 11 | 17 | 3.5 | 6.35*0.8 | 46 | |||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | 46 | |||||||||||||||||
YB11C4-10A-Q EMI Filter:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
