Yanbixin High Quality A13 IEC Inlet Filter 1A~20A Socket EMI Filter For Data Equipment
Technical Specification:
| Item | Socket Emi Power Filter |
| Model | Socket Emi Power Filter YB-A |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Excellent performance/compact structure
-- Screw-on version from front rear side
-- Optional medical versions((R5) type)
-- Quick connect(6.35*0.8mm),solder or wire
-- High performance and high attenuation power filters with IEC 320 socket
-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements
Typical Applications:
-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
-- Single-phase power supplies, switch-mode power supplies
Rule of Nomination:
| YB | 11 | A13 | - | 20A | - | Q |
| | | | | | | | | | | ||
| Single Phase | Circuit | Dimension | Current | Output Connection | ||
| 11:11 circuit | A10 | 10A : 10 amp | Q:fast-on tab 250 | |||
| 15A : 15 amp | W:wire | |||||
| 20A : 20 amp | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options* | Bleeder resistor (optional) | G (optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage | Operating Frequency (Hz) | ||
|
|
||||||||||
| YB11A1-1A | 1A | Q | S | W | - | - |
<0.8mA |
Fig.1 |
115/250V |
50/60Hz |
| YB11A1-2A | 2A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-3A | 3A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-4A | 4A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-6A | 6A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-8A | 8A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-10A | 10A | Q | S | W | - | - | Fig.1 | |||
| YB11A1-15A | 15A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-1A | 1A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-2A | 2A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-3A | 3A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-4A | 4A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-6A | 6A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-8A | 8A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-10A | 10A | Q | S | W | - | - | Fig.1 | |||
| YB11A2-15A | 15A | Q | S | W | - | - | Fig.1 | |||

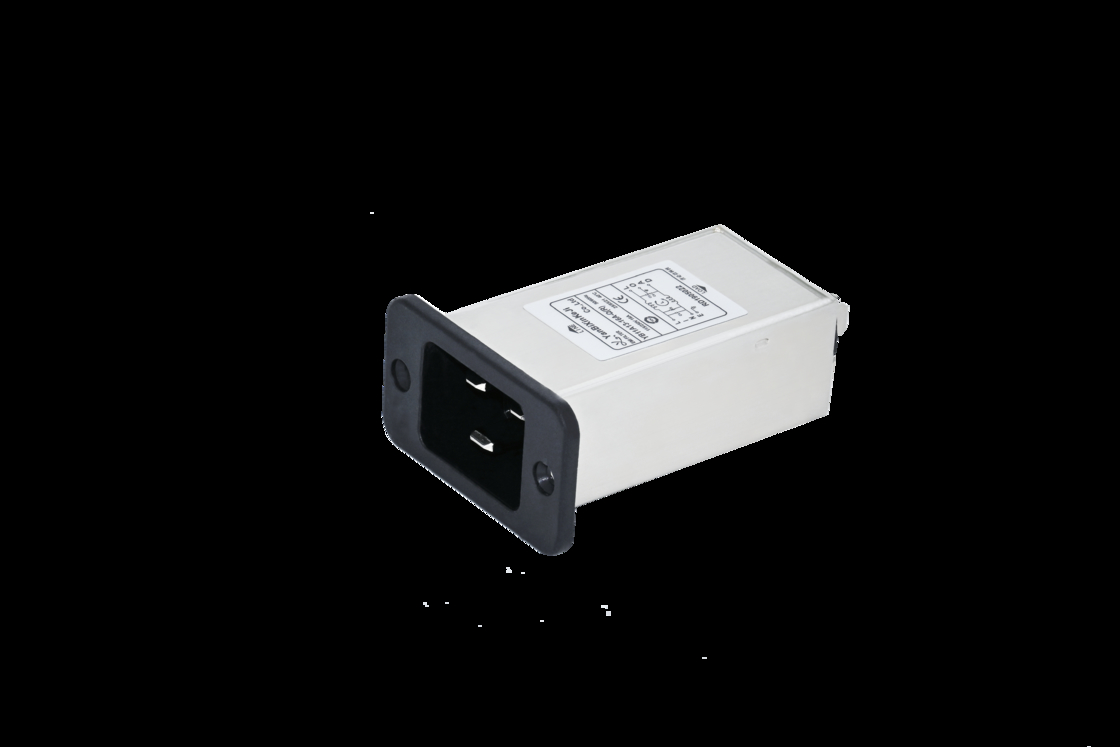

YB11A13-20A-Q IEC Inlet Filter Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
